CH-1 Review

What is compiling process?

7 steps

  1. Lexical Analysis
  2. Syntactical Analysis
  3. Interpretation
  4. Machine Independent Optimization
  5. Storage Assignment
  6. Code Generation
  7. Assembly Output

Important

  • Steps 1 - 4 are machine independent Analysis
  • Steps 5 - 7 are machine dependent Synthesis

Syntactical Analysis

  • Use parsing tree to analyze the order of the expression
  • Decide the order of execution

Important

Order of execution:

  • operator precedence
  • association

Semantic Analysis

  • Type checking
  • Type conversion

Note

Cross Compiler

It is a kind of compiler that produces object codes compilers on other machines to compile

Analysis

  • Break source code into pieces
  • generate intermediate code as the representation of the source code

Synthesis

  • Based on the intermediate code, generate the target code

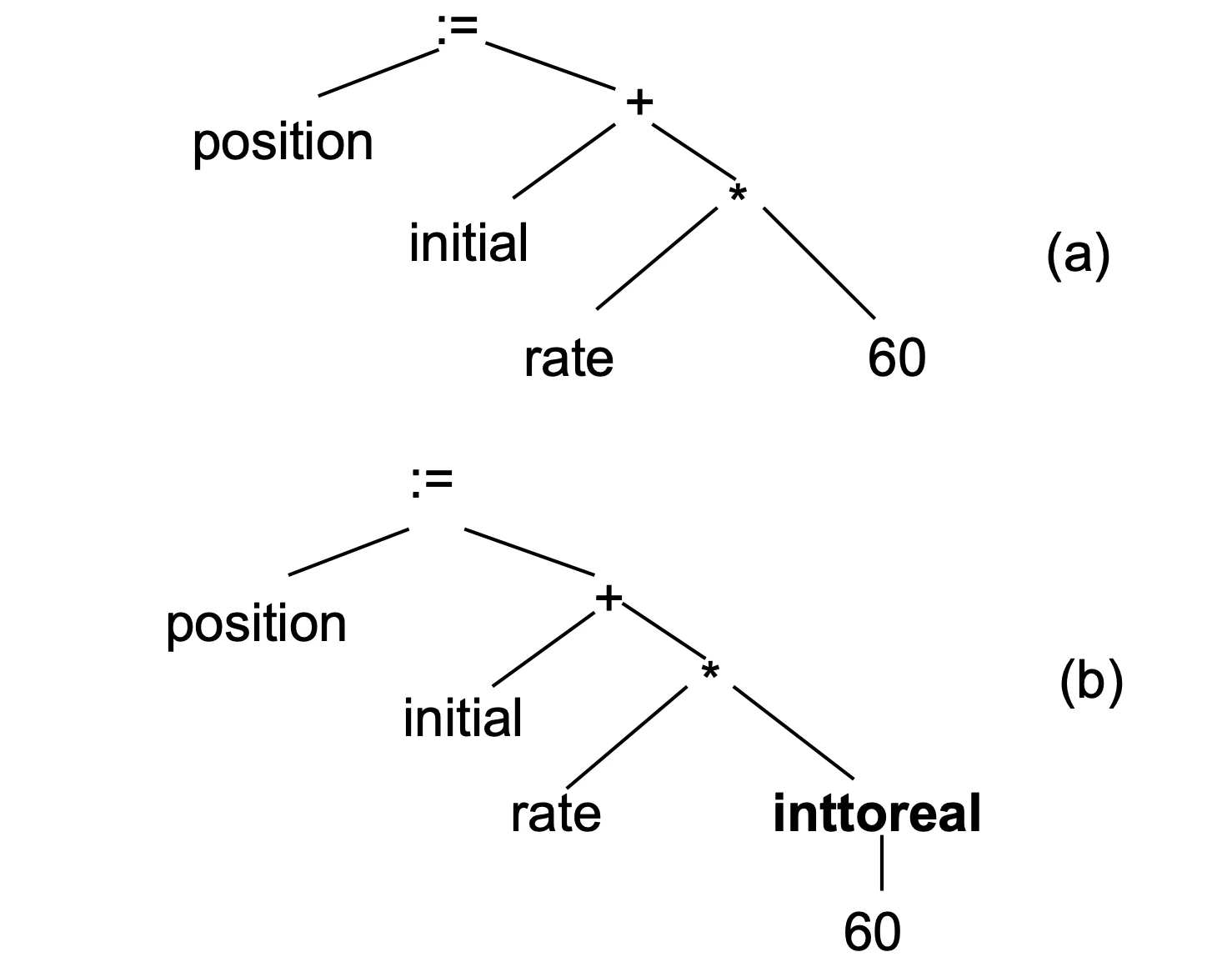

Syntax Tree

  • e.g. position:= initial + rate * 60
:=
 / \
 / \
position +
 / \
 / \
 initial *
 / \
 / \
 rate 60

How does a program get compiled and executed?

  1. Preprocessing
  2. Compiling
  3. Assembling
  4. Linking
  5. Loading

Phase of Analysis

Lexical Analysis

  • Parse the source code into tokens
  • e.g. position:= initial + rate * 60 -> position, :=, initial, +, rate, *, 60

Hierarchical Analysis

  • Tokens are put together into a nested structure with collective meanings

Semantic Analysis

  • Perform certain checks to ensure the components put together are meaningful

Screenshot 2024-05-30 at 17.16.03
